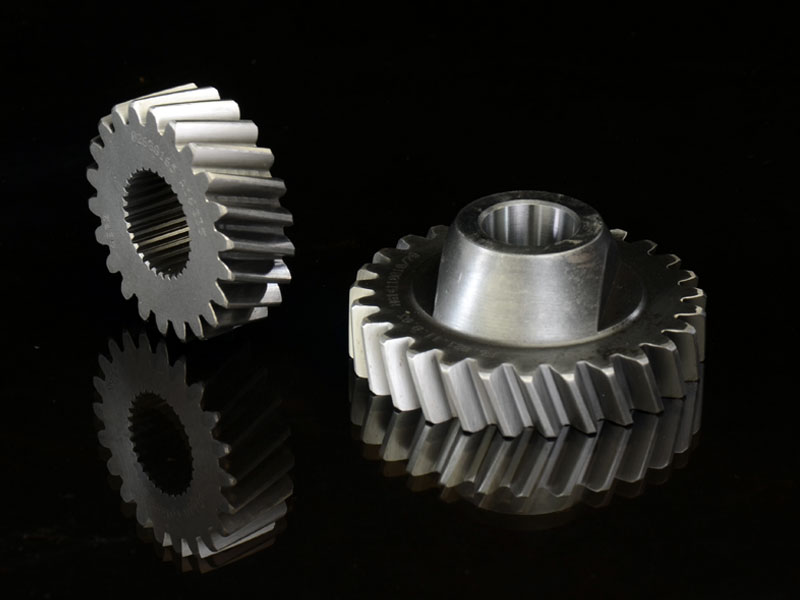

Helical Gears

Helical gear can be used for transmitting motion between parallel shafts as well as between perpendicular (or any other angle) shafts. Helical gears used for transmission at any angle are usually called spiral gears. When gear teeth are cut on a spiral that wraps around the cylinder they are designated as helical. Helical teeth enter the meshing zone progressively and therefore have a smoother action than spur gear teeth and tend to be quieter. In addition, the load transmitted maybe somewhat larger or the life of gears may be greater for the same loading, than within equivalent pair of spur gear conversely, in some cases smaller size Helical gears (compared with spur gears) may be used to transmit same loading. The efficiency of the helical gear set, which is dependent on the total normal tooth load (as well as the sliding velocity and friction co-efficient etc.) will usually be slightly lower than for an equivalent spur gear set. For external parallel axis helical gears to mesh they must have same helix angle but be of different hand.

Helix angle form only a few degrees up to about 45° are parallel. As the helix angle increases from zero. In general the noise level is reduced and the load capacity is increased. At angle much above 15° to 20° however drop off. This is due to the fact that the transverse tooth thickness decreases rapidly. Herring Bone or Double Helical gear are frequently used to obtain the noise benefit of single gear without the advantage of thrust loading. The terms double Helical and Herring bone are sometimes used interchangeability actually herring Bone is more correctly used to describe double helical teeth that are cut continuously into a solid blank. The double helical gears may be cut integral with the blank, either in line or staggered, two separate parts may be assembled the double. Herring bone gear having a small groove between two helices. The groove is required for hobbing and shaving or grinding operation. The construction results in equal and opposite thrust reations, balancing each other and imposing no thrust load on the shaft. This types of gears are used only for parallel shaft.

Crossed Helical Gear:

Crossed Helical gear connect skew shafts. Both members may be helical gears or one may be spur gear according to the chosen relationship between the shaft angle and the tooth helices. The efficiency of the helical gears is quiet good though not quiet equal to that of simple spur. This is due to that of simple spur. This is due to the fact that all other things, being equal, the normal ( or total ) tooth load on a helical gear is higher than that on a spur for an equivalent tangential load.

Advantages of Helical Gear transmission over Spur gear transmission

Helical gear transmission gives comparatively noiseless motion at higher surface speeds.
Helical gear transmission gives comparatively smooth transmission at small gears with fewer teeth at large transmission ratio up to 15: 1.

Use of Helical Gears

The teeth of these gears are cut at an angle with the axis of the shaft. Helical gears have an involute profile similar to that of spur gear. However, this involute profile is in a place which is perpendicular to the both elements. The magnitude of the helix angle of pinion and gear is same, however the hand of helix is opposite. A right hand pinion meshes with a left hand gear and vice versa. Helical gears impose radial and thrust loads of the shaft.

We manufacture Helical Gears with following specifications

Gear Type	Normal Module in mm		Outside Diameter in mm
	Minimum	Maximum	Minimum	Maximum
Helical Gears-Hob Finish	0.5	25	10	2500
Helical Gears Hardened & Precision Ground	0.5	35	50	1250

Helical Gears

Complying Quality Gear Manufacturing Standards

" We manufacture world class ground gears for customers who need medium volume Gears, using best gear grinding technology and advance inspection facility "

Manufacturing Capabilities

We have an amazing array in our arsenal. We have everything on platter - Spur gears, Helical gears, Worm & Worm wheels, Racks & Pinions, Gear couplings with full crowing, Internal Gears, Segment gears, Cluster gears, Splined shafts, Sprockets, Cam gears, Timing Belt Pulleys etc. With astonishing range on cards, we are in a position to cater the requirements of different market segments. Be it any kind of segment, we assure effective & durable performance to any kind of machinery. Our products come with assured quality up to Class 3 of DIN 3962 in hardened/ground and with twice range of macules from 0.5 to 35 in. We, therefore, are in a position to meet variety of applications. We have become preferred business associates to many world-class manufacturers, thanks to our specialty in manufacturing of Hardened & Ground gears with precision quality.

Gear Type	Normal Module in mm		Outside Diameter in mm
	Minimum	Maximum	Minimum	Maximum
Spur Gear – Hob Finish	0.5	25	10	2500
Spur Gear – Hardened & Precision Ground	0.5	35	50	1250
Spur Gear – Shaped (External)	0.5	25	10	1000
Spur Gear – Shaped (Internal)	0.5	10	75	700
Helical Gears – Hub Finish	0.5	10	10	2500
Helical Gears Hardened & Precision Ground	0.5	35	50	1250
Cluster Gears	0.5	12	10	1000
Timing Belt Pulleys	All Varieties		10	2000
Worms - Milled	1	12	10	200
Worms Hardened And Ground	1	12	10	200
Worm Wheels	0.5	25	10	2500
Chain Sprockets, Pitch	5mm	38.1mm	10	200
Gear Coupling (Full Crowing)	0.5	6	10	500
Gear Coupling Sleeves (I.D.)	0.5	6	50	600
Racks	0.5	8	Length 50-1000 mm
